    4 Feet Width Coated Expanded Metal , 5 X 10mm Carbon Steel Woven Metal Mesh


    4 Feet Width 5x10mm Steel Expanded Metal Mesh With Weight 6.5KG Per Roll


    Expanded Metal is produced from solid sheets or plates of carbon, galvanized and stainless steel, as well
    as aluminum and a variety of alloys of copper, nickel, silver, titanium and other metals. Because expanded metal is made from a solid sheet of metal, and it is not woven or welded - it can never unravel.
    To produce expanded metal, a sheet or plate is simultaneously slit and stretched. This process expands the cuts into diamond shaped holes of uniform size and shape. Because no metal is lost in the expanding process,expanded metal is cost effective and saves energy by conserving material and allowing the fabrication to go further and do more.


    Introduction:

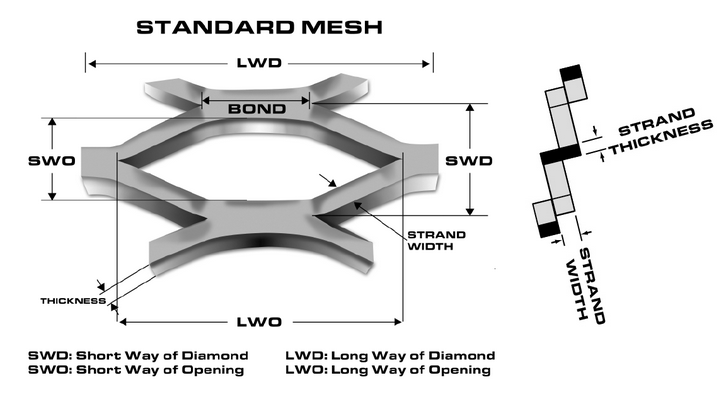

    When choosing expanded metal for your fence application, you will need to determine which style or diamond size is best for your application. Expanded metal designations are indicated by SWD (the measurement on the short way of diamond), while the second number may specify the gauge of metal,
    the weight per hundred sq. foot, or have some other significance.


    Another consideration when ordering expanded metal mesh panels is the actual metal strand width and
    metal strand thickness. These are important because they contribute the actual opening size of the
    diamond and the % open area or visibility through the fence.


    Specifications:


    Expanded metal mesh
    SWD&LWD5*10mm
    Thickness0.5mm
    Mesh width4 feet
    Mesh length12m
    Net weight6.5kg/roll

    Expanded metal mesh during production:
