    1500 Mm Working Width Metal Flattening Machine For Flattening And Uncoiling

    Ask Lasest Price
    Brand Name : Anao
    Model Number : PW50
    Certification : CE, ISO9001
    Price : Negotiable
    Supply Ability : 2 - 3 sets per month
    Delivery Time : 30 days after receiving deposit or L/C
    • Product Details
    • Company Profile

    1500 Mm Working Width Metal Flattening Machine For Flattening And Uncoiling


    1500 Mm Working Width Metal Flattening Machine For Flattening And Uncoiling


    Introductions:


    The flattening process reduces the original thickness of the base metal. Our company can supply all kinds of flattening machine, such as two-roller flattening machine, four-roller flattening machine,manual flattening machine, automatic flattening machine, etc. Currently the machine is applied to processing expanded metal with a maximum sheet thickness of 4mm and a length between 0.5m to 2.7m.Flattening machine can customized roller diameter range from 300mm to 800mm,working width 1000mm to 3000mm.


    Flattening Machine PW series
    ModelsPW45PW504PW20
    Working width1500mm1500mm2000mm
    Roller Diameter450mm500mm400mm
    Working speed12-15m/min12-15m/min12-15m/min
    Motor7.5KW 220/380v 50Hz7.5KW220/380 50Hz11KW220/380 50Hz
    Weight5500KG7000KG7000KG

    Besides, we can make the flatten machine according to customers requirements.


    Flattening Machine PW50 Parameter:


    Flattening Machine PW50
    Working width1500mm
    Roller Diameter500mm
    Gear ReducerZQ500
    Working speed12-15m/min
    Motor7.5KW 220/380v 50Hz
    Weight7 ton
    Measurement2800mmx1700mmx1700mm

    Operation of flattening machine:


    Adjust the flattening machine's left and right pressure vessels,slowly push the uneven mesh into the front table,after the two pressure rollers flattening,then collect or recoil the mesh in the other side.For the finished production expanded metal mesh,flattened by flattening machine,not only planish expanded metal mesh’s connect points, let mesh surface smooth and beautiful,at the same time can eliminated the internal forces during produce expanded metal mesh,thus improved the mesh rigidity.

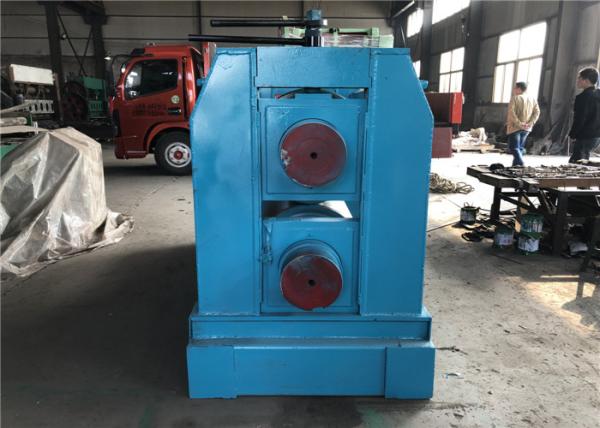

    Flattening machine when delivery to customer:



    Quality 1500 Mm Working Width Metal Flattening Machine For Flattening And Uncoiling for sale
