    Small Expanded Metal Mesh Making Machine For Produce Material Copper Foil

    Ask Lasest Price
    Brand Name : Anao
    Model Number : JQ25-16
    Certification : CE,ISO9001
    Price : Negotiable
    Supply Ability : 2 - 3 sets per month
    Delivery Time : 30 days after receiving deposit or L/C
    • Product Details
    • Company Profile

    Small Expanded Metal Mesh Making Machine For Produce Material Copper Foil


    Small Expanded Metal Mesh Making Machine For Produce Material Copper Foil


    Expanded metal machine for special material:


    Copper mesh as we all know have one kind of woven copper mesh.But sometimes for some applications customer will need copper mesh not wovened by machine,they need copper foil material punched and expanded,so customer should use expanded metal machine to produce copper mesh.


    The specification of copper mesh produced by expanded metal machine,sometimes the thickness or mesh LWD&SWD similar with other expanded metal mesh.But sometimes if customer choose copper foil as the material,then the copper mesh thickness and mesh LWD&SWD will be very small.For example,thickness maybe only 0.1mm and LWD&SWD maybe only 2.5mm&1.2mm.


    Generally customer use expanded metal machine to produce width under 1m width copper mesh,so customer can choose expanded metal machine JQ25-16.If the copper mesh width smaller than 600mm,then can also choose JQ25-6.3 to making copper mesh.


    Technical parameter of expanded metal machine JQ25-16 and JQ25-6.3:


    Expanded metal machine JQ25-16
    Working width1000mm
    Material thickness0.2-1.2mm
    Distance of feeding0-3.0mm
    Working speed150/min
    Motor3KW 220/380v 50Hz
    Weight2470KG
    Measurement

    1750mm*1500mm*1900mm


    Expanded metal machine JQ25-6.3
    Working width600mm
    Material thickness0.2-1.0mm
    Distance of feeding0-3.0
    Working speed300/min
    Motor2.2KW 220/380v 50Hz
    Weight960KG
    Measurement1090mm*710mm*1450mm

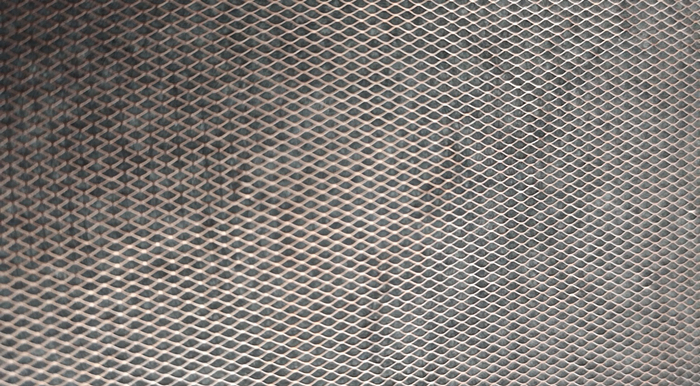

    Photo of copper mesh produced by expanded metal machine with copper foil material:
