    Expanded Metal Mesh Making Machine 50 X 20mm LWD / SWD Mesh Hole Size

    Ask Lasest Price
    Brand Name : Anao
    Model Number : JQ25-100
    Certification : CE,ISO9001
    Price : Negotiable
    Supply Ability : 2 - 3 sets per month
    Delivery Time : 30 days after receiving deposit or L/C
    • Product Details
    • Company Profile

    Expanded Metal Mesh Making Machine 50 X 20mm LWD / SWD Mesh Hole Size


    50 X 20mm LWD & SWD Mesh Hole Size Expanded Metal Mesh Making Machine


    Introduction:


    The expanded metal mesh machine is used to produce expanded metal mesh, also called expaned metal lath.Expanded metal mesh can be used in construction, hardware, door and windows and lathes.
    Some products with surfacing processed can be wildly used in decoration of the building or house.


    The machine is in high speed with satisfied expanded mesh. The shearing force of the expander is related to the thickness of the materials as well as the LWD. Considering the same thickness of the raw materials, the shearing force will increase with the decreased LWD.


    Technical parameter:


    Expanded metal machine JQ25-100
    Working width2000mm
    Material thickness0.5-6.0mm
    Distance of feeding0-10.0mm
    Working speed52/min
    Motor22KW 220/380v 50Hz
    Weight12500KG
    Measurement

    3500mm*1750mm*2300mm(Main machine)

    2650mm*1940mm*700mm(Secondary machine)

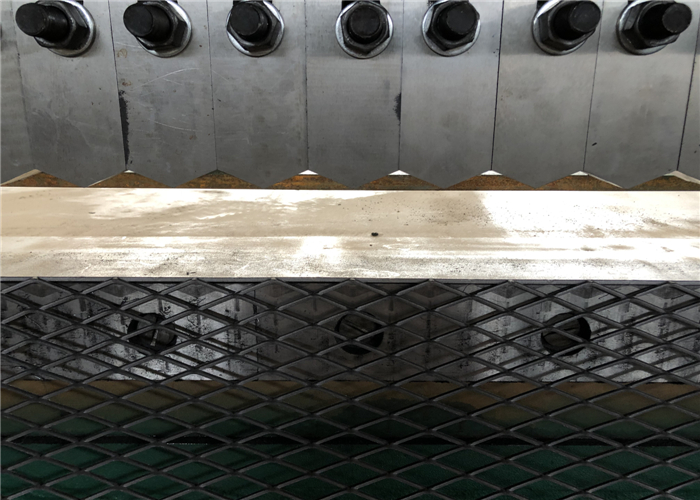

    Expanded metal mesh 50 X 20mm mesh hole size produced by expanded metal machine:
